Bestückungsplan der beiden Platinen
Bauteil-Liste ohne Gehäuse Teile
| Menge | Wert | Bauteil | Nummer |
| 2 | 22pF | Keramik Kondensator | C1, C2 |
| 2 | 0,1µF | Keramik Kondensator | C3, C4 |
| 1 | 100µF | Elko 16V | C5 |
| 1 | 4,7µF/16V | Elko 16V | C6 |
| 1 | 1N4007 | 1N4007 | D1 |
| 5 | SC56-SRWT | Knightbright | DIS1, DIS2, DIS3, DIS4, DIS5 |
| 1 | MEGA8-P | MEGA8-P | IC1 |
| 1 | LM393 | LM393 | IC2 |
| 1 | 4543N | 4543N | IC3 |
| 1 | LM7805 | LM7805 | IC4 |
| 1 | LED aus | Jumper | JP1 |
| 1 | Led rot | Led 3mm | LED1 |
| 1 | 16Mhz | Quarz | Q1 |
| 1 | 15k | 1/4 W Widerstand | R11 |
| 1 | 47k | 1/4 W Widerstand | R15 |
| 1 | 330 | 1/4 W Widerstand | R16 |
| 1 | 10k | Trimmer | R2 |
| 1 | 15k | 1/4 W Widerstand | R3 |
| 1 | 1M | 1/4 W Widerstand | R4 |
| 1 | 10k | 1/4 W Widerstand | R5 |
| 2 | 150 | 1/4 W Widerstand | R1, R6 |
| 7 | 100 | 1/4 W Widerstand | R7, R8, R9, R10, R12, R13, R14 |
| 1 | L | Taster | S1 |
| 1 | R | Taster | S2 |
| 1 | OK | Taster | S3 |
| 1 | CNY70 | CNY70 | SENSOR1 |
| 1 | ISP | MA05-2 | SV1 |
| 1 | BC547 | BC547 | T1 |
| 1 | USB-A Buchse | X1 | |
| 1 | Schraubklemme 3,5mm | X4 |
Bemassung Rückwand / Material Alu-Blech 1,5mm eloxiert
Bemassung Frontscheibe / Material Plexi GS 3mm rot
Bemassung Deckel / Material Alu-Blech 1,5mm eloxiert

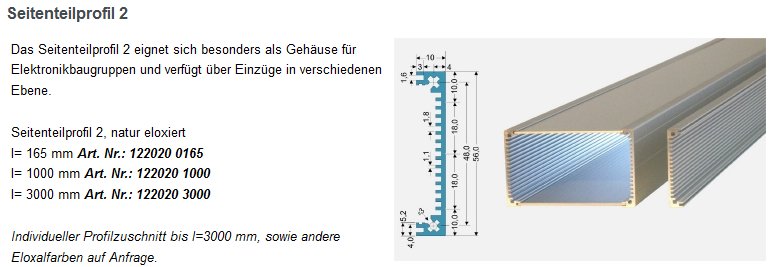

Seitenteile 2 Stück 33mm Quelle:http://www.gie-tec.de
