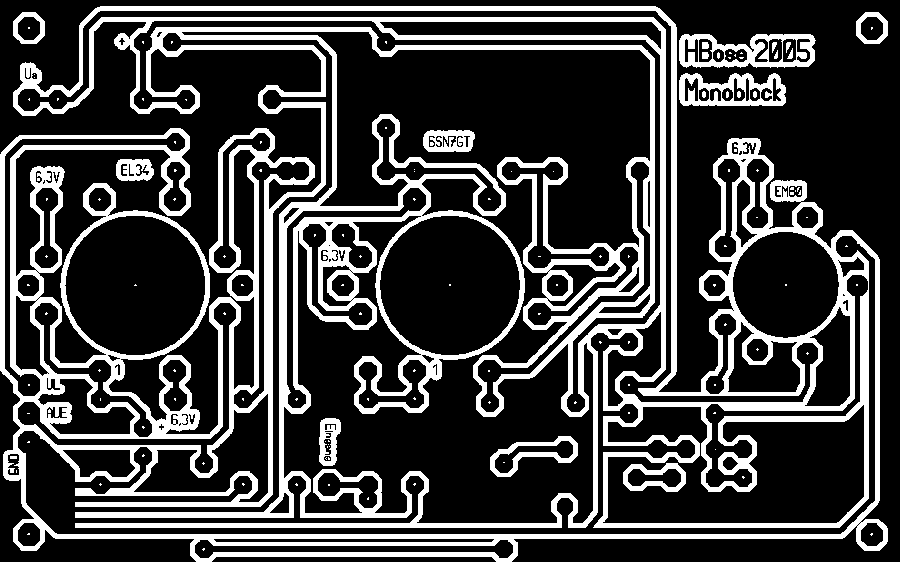

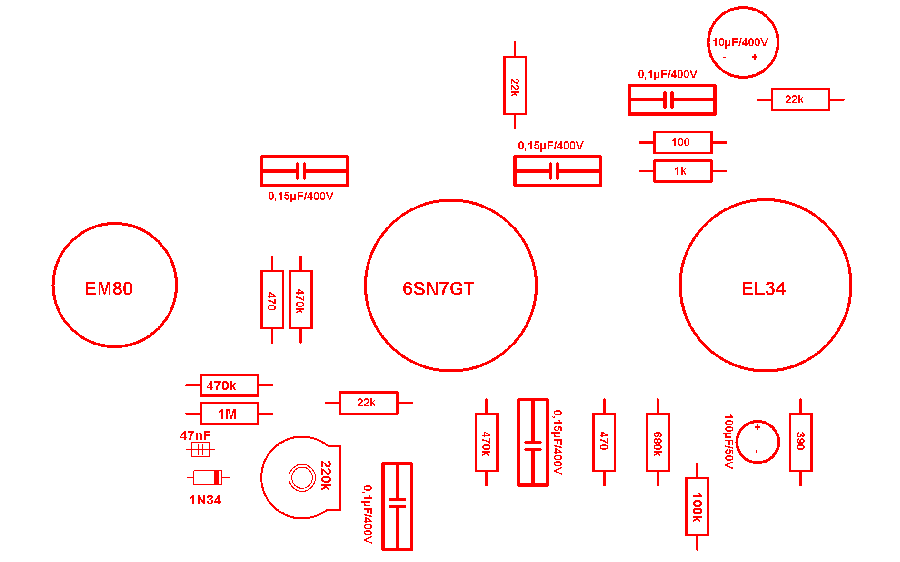

Materialliste Endstufe für einen Kanal
| Menge | Wert | Bauteile |
| 1 | 2,5k
Übertrager |
T1 |
| 2 | 0,1µF/400V | C7, C8 |
| 3 | 0,15µF/400V | C2, C3, C4 |
| 1 | 0,047µF/100V | C6 |
| 1 | 1M | R15 |
| 1 | 1N34 | D1 |
| 1 | 1k | R8 |
| 1 | 6SN7GT | V1 |
| 1 | 10µF/400V | C1 |
| 3 | 22k | R1, R2, R3 |
| 1 | Poti 50k log | R7 |
| 1 | 100µF/50V | C5 |
| 1 | 100 | R5 |
| 1 | 100k | R6 |
| 1 | Trimmer 220k | R9 |
| 1 | 390 | R16 |
| 2 | 470 | R11, R13 |
| 3 | 470k | R4, R10, R12 |
| 1 | 680k | R14 |
| 1 | CINCH | BU1 |
| 1 | EL34 | V2 |
| 1 |
EM80 |
V3 |
| 2 |
Oktal
Fassungen |
V1&V2 |
| 1 |
Noval
Fassung |
V3 |

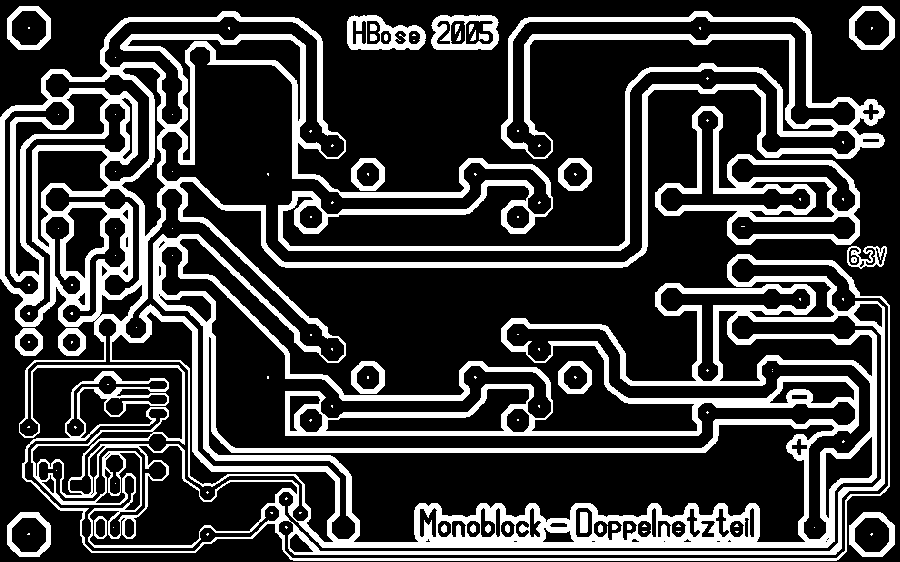

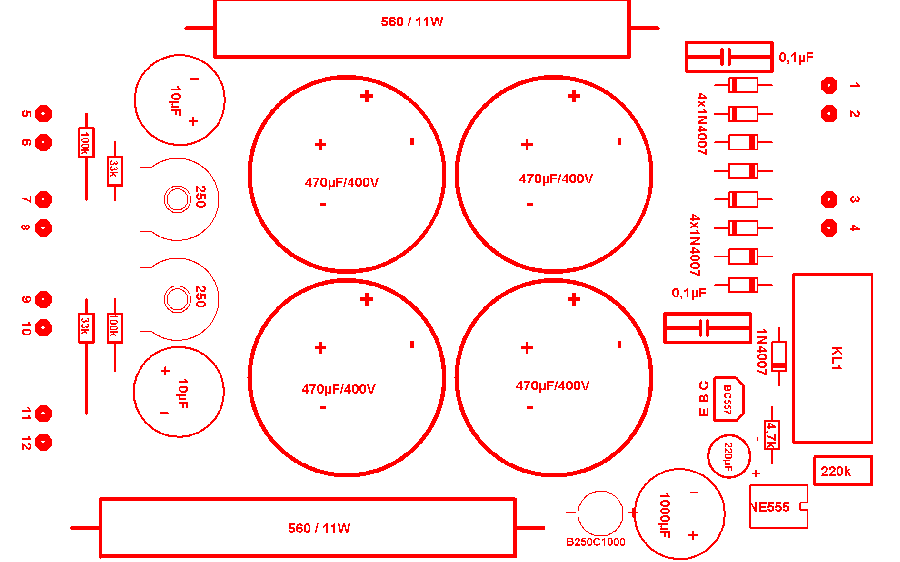

Stückliste Netzteil für beide Kanäle
| Menge | Wert | Bauteile |
| 1 | Netzschalter |
S1 |
| 8 |
1N4007 |
B1, B2 |
| 4 |
0,1µF/400V | C1,C4,C6, C9 |
| 1 | 1N4007 | D1 |
| 1 | 4,7k | R10 |
| 1 | Relais 6V 2xUm
400V/16A |
K1 |
| 2 |
10µF/400V | C5,C10 |
| 2 | 33k | R3, R7 |
| 2 | 100k | R2, R6 |
| 1 | 220µF/16V | C12 |
| 1 | Trimmer 250 | R4,R8 |
| 1 | Trimmer 250k | R9 |
| 2 | 470µF/400V | C2, C3, C7, C8 |
| 1 | Sicherung 500mA | SI1 |
| 2 | 560/11W | R1, R5 |
| 1 | 1000µF/16V | C11 |
| 1 | B250C1000 | B3 |
| 1 | BC557 | T1 |
| 1 | NE555N | IC1 |
| 1 |
Trafo 2 x 250V / 100mA 2 x 6,3V / 2,4A |
